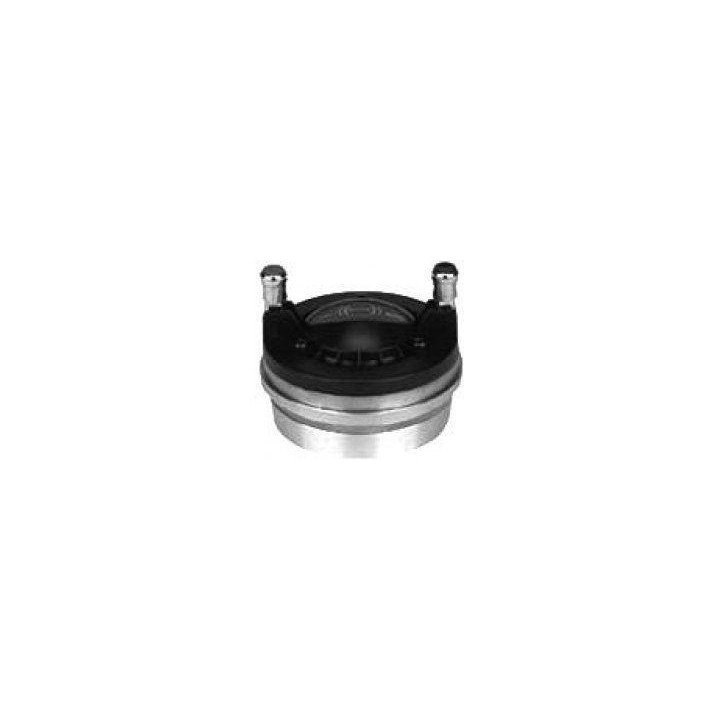

Beyma - CP385ND

Specifications:

• Throat diameter 25 mm 1 in.
• Rated impedance 8 ohms.
• Minimum impedance 5.2 ohms. @ 4.5 kHz
• D.C. Resistance 4.7 ohms.
• Power Capacity* 70 w AES above 1.5 kHz
• Program Power 140 w above 1.5 kHz
• Sensitivity** 107 dB 1w @ 1 m coupled to TD-250 horn
• Frequency range 0.8 - 20 kHz
• Recommended crossover 1.2 kHz or higher, 12dB/oct. min.
• Voice coil diameter 44.4 mm. 1.75 in.
• Magnetic assembly weight 1.1 kg. 2.42 lb.
• Flux density 2.2 T
• BL factor 7.5 N/A
