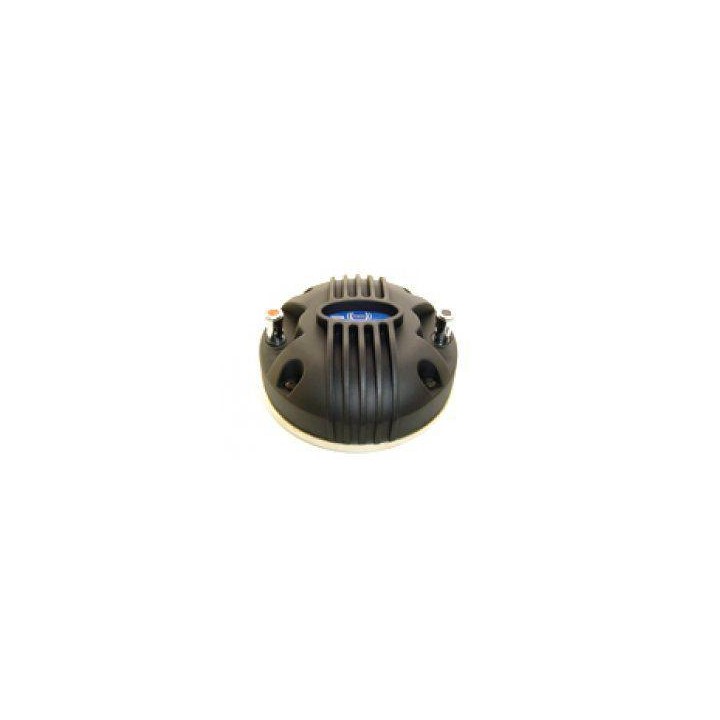

Beyma - CP755ND

Specifications:

• Throat diameter 36 mm. 1.4 in.
• Rated impedance 8 ohms
• Minimum impedance 7.3 ohms @ 3.5 kHz
• D.C. Resistance 5.5 ohms
• Power capacity * 60 w AES above 0.8 kHz
• 80 wAES above 1.5 kHz
• Program power 120 w above 0.8 kHz
• 160 w above 1.5 kHz
• Sensitivity ** 112 dB 1 w @ 1m coupled to TD-565 horn
• Frequency range 0.6 - 20 kHz
• Recommended crossover 800 Hz or higher (12 dB/oct. min.)
• Voice coil diameter 72.2 mm. 2.87 in.
• Magnetic assembly weight 2.7 kg. 5.94 lb.
• Flux density 2.2 T
• BL factor 11.5 N/A
