Guil - TP300-500mm

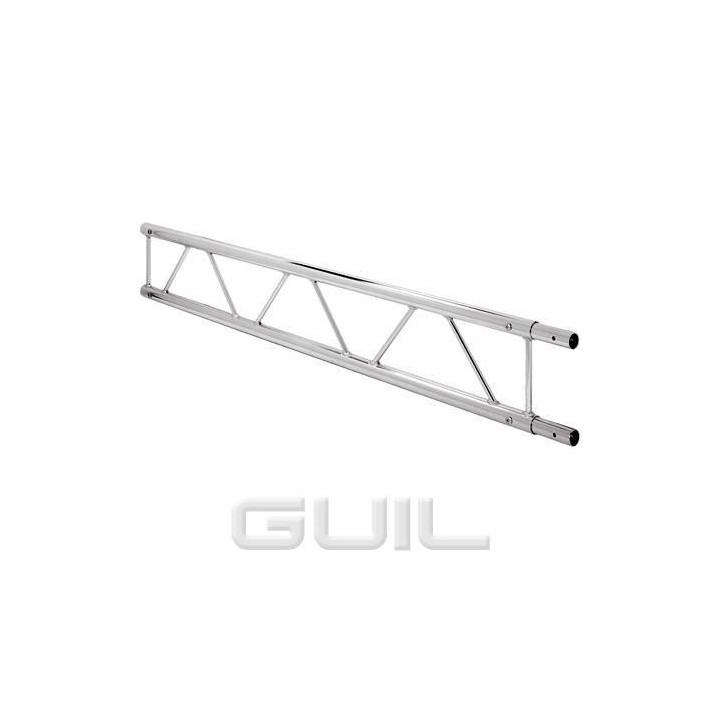

TP300 series is a lightweight modular system which is portable and easy to set up. They are the perfect solution for lightweight applications, permanent or semi-permanent installations and decorative purposes.

TP300 Truss is manufactured from extruded aluminium tube (Alloy: EN-AW 6082 T6 according to the safety norm UNE-EN573) and TIG welded (continuous cord) for maximum resistance.

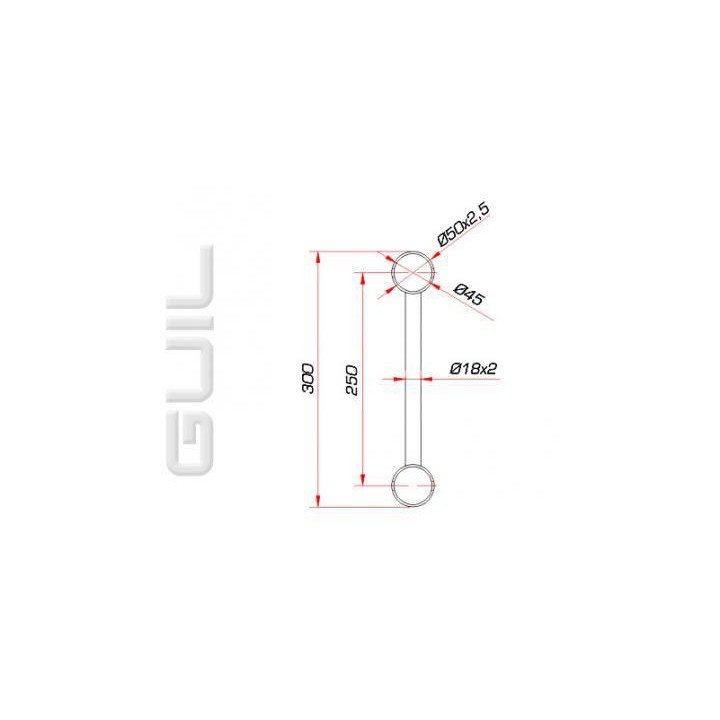

- Wall main tubes of 50 mm x 2.5 mm (1.97" x 0.10")
- Braces/Diagonals of 18 mm x 2 mm (0.71" x 0.08")

Features:

Colour: Polished Aluminium
Main Tubes: Ø 50 x 2,5 mm
Braces: Ø 18 x 2 mm
Material: Polished
Alloy: EN-AW 6082 T6
Standards: DIN 4113; BS 8118

TP300 series is a lightweight modular system which is portable and easy to set up. They are the perfect solution for lightweight applications, permanent or semi-permanent installations and decorative purposes.

TP300 Truss is manufactured from extruded aluminium tube (Alloy: EN-AW 6082 T6 according to the safety norm UNE-EN573) and TIG welded (continuous cord) for maximum resistance.

- Wall main tubes of 50 mm x 2.5 mm (1.97" x 0.10")
- Braces/Diagonals of 18 mm x 2 mm (0.71" x 0.08")

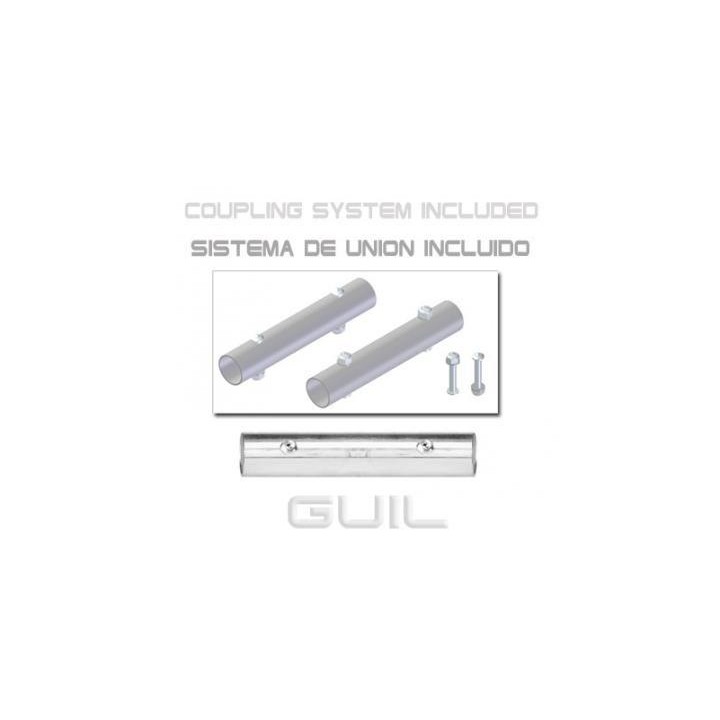

Each TP300 truss comes complete with the UTR-01 coupling system, made up of a calibrated tube with M10 bolts. The UTR-01 connection system allows a fast, quick and reliable assembly.

TP300 truss offers a flexible, reliable and visually attractive solution for many applications like:

* Trade show booths
* Conferences
* Decoration purposes (shop fitters, architectural and interior design..)
* Theatres, Night clubs
* Exhibitions
* Staging applications

TP300 Parallel truss has been manufactured with the most advanced welding equipment, carefully selecting the raw materials used and controlling the quality of all their components during their manufacturing process. These quality control processes guarantee maximum safety and resistance, complying with the lightweight, sturdiness and manoeuvrability requirements needed for the construction of aluminium structures. TP300 Ladder Truss are tested according to the DIN 4113/ BS 8118 specifications.
