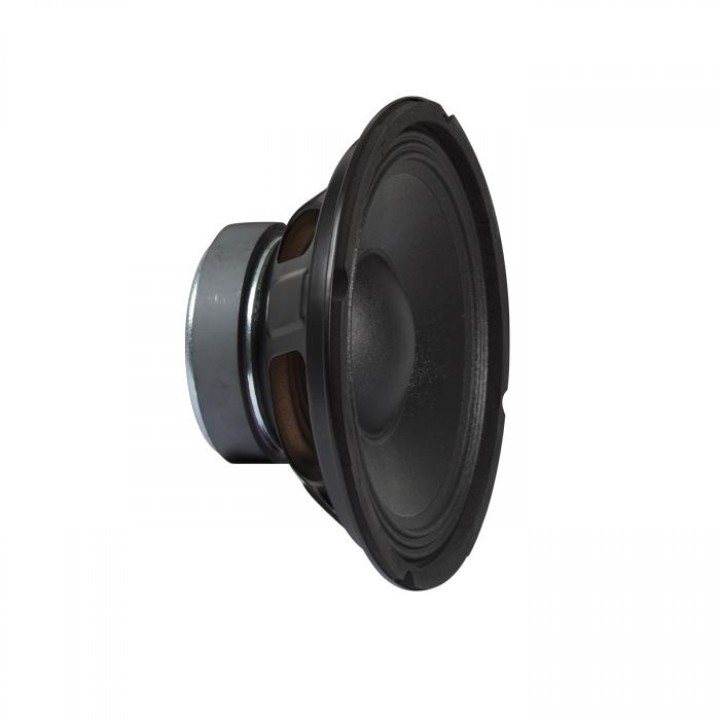

Fonestar - FPW-200

Mid/bass speaker with cardboard membrane, metal chassis and ferrite magnet. It provides a punchy sound at low frequencies, with clear and natural mids. Linear response for a wide frequency range and exceptional characteristics for Hi-Fi. Recommended for bass-reflex or hermetic enclosures.

APPLICATIONS

For musical instruments, acoustic screens, Hi-Fi speakers, etc.

TECHNICAL DATA

100 W RMS@8 Ω Response 55-4,000 Hz Sensitivity 91 dB at 1 W/1 m

DIAMETER 8" = 20cm

POWER 200 W maximum, 100 W RMS

RESPONSE 55-4,000Hz

IMPEDANCE 8Ω

SENSITIVITY 91 dB at 1 W/1 m

WINDING 25 mm Ø x 12.5 mm height

MAGNET Ferrite 100 mm 20 Oz

MOBILE MASS 16.2 g

RECOMMENDED BOX VOLUME 36 l

MEASURES

Total: 202 mm Ø x 90 mm depth

Insert: 185 mm Ø x 82 mm depth

WEIGHT 1.3 kg
