Guil - TQN290-3000

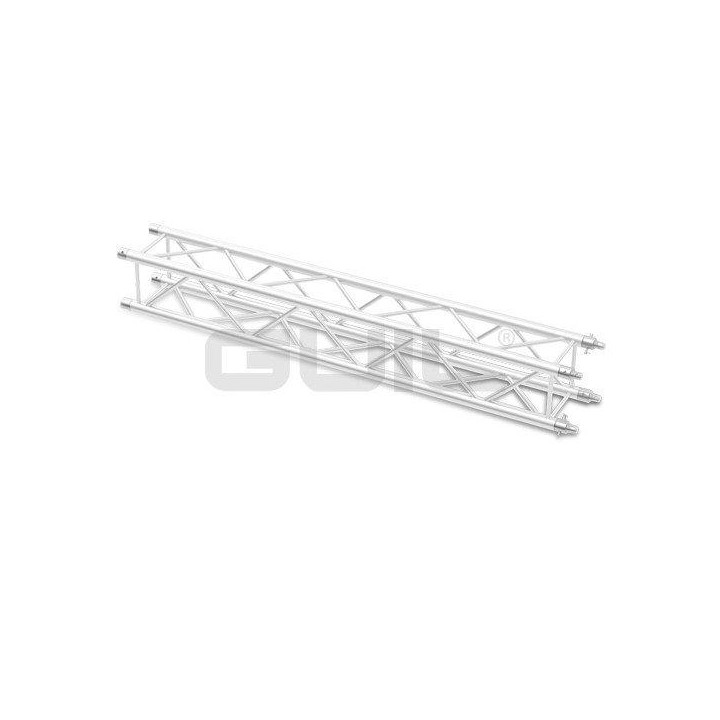

TQN290 290 x 290 mm square truss with joint systems included
Truss of aluminum of quadrangular section of 290 x 290 mm with system of fast connection.

The modular structure TQN290 is manufactured in extruded aluminum with TIG welded corrido to ensure maximum safety and resistance.

- Alloy: EN-AW6082 T6

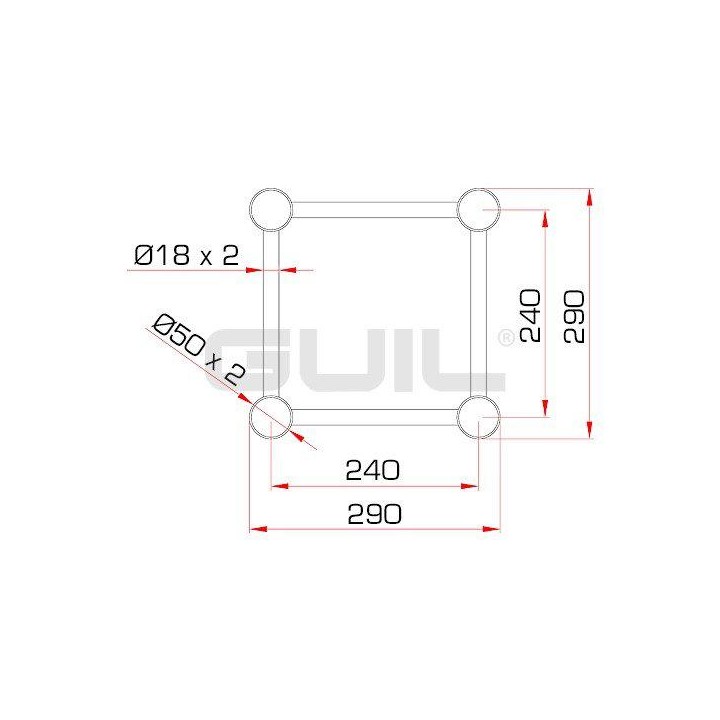

- Ø 50 main tubes (2 mm wall).

- Sleeves Ø 18 (2 mm wall).

The connection of the modules is made by means of a quick connection system with aluminum conical pins and pins, which guarantees a perfect fit of the assembled joints.

Measurements:

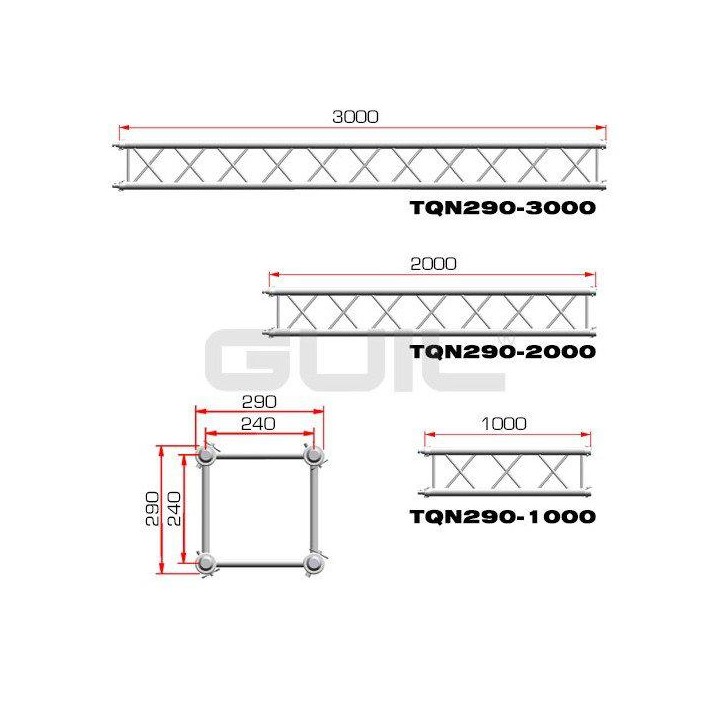

• Ref. TQN290-3000: 290 x 290 x 3000 mm (Weight: 14,60 Kg)
