Guil - TQN290-500

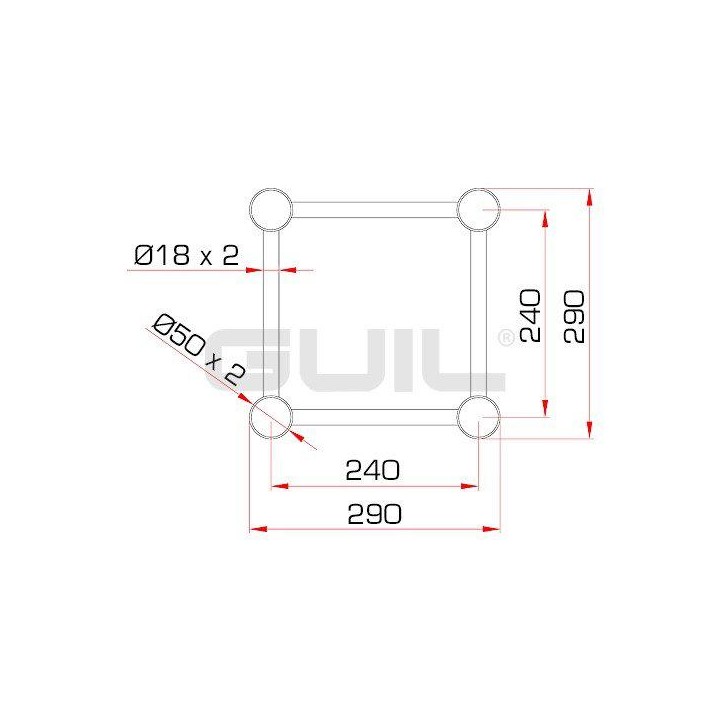

TQN290 290 x 290 mm square truss with included joining systems

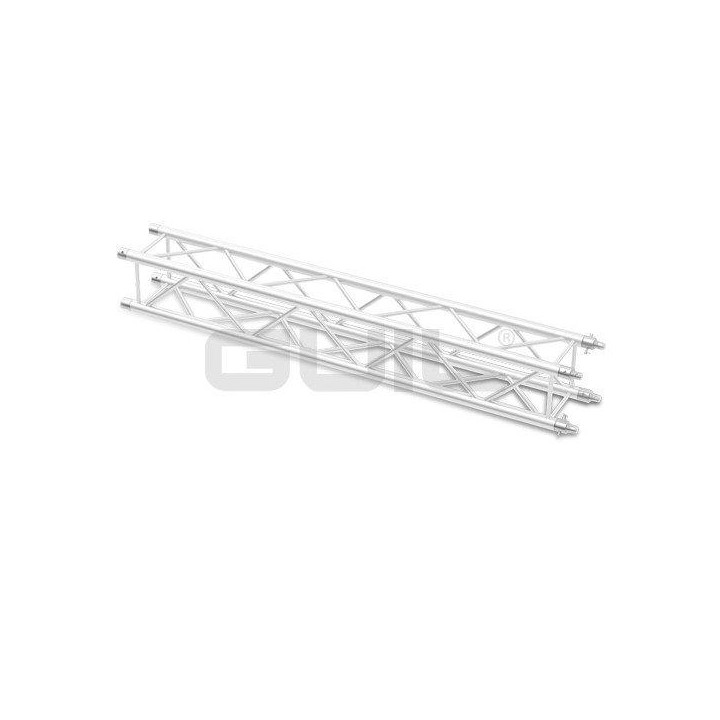

Aluminum truss with a square section of 290 x 290 mm with quick connection system.

The TQN290 modular structure is made of extruded aluminum with continuous bead TIG welding to guarantee maximum safety and resistance.

- Alloy: EN-AW6082 T6

- Ø 50 main pipes (2 mm wall).

- Ø 18 sleepers (2 mm wall).

The modules are joined by means of a quick connection system with aluminum bolts and taper pins, which guarantees a perfect fit of the assembled joints.

Data sheet

• Material: Aluminum
• Color: Aluminum
• Measurements: 290 x 290 mm

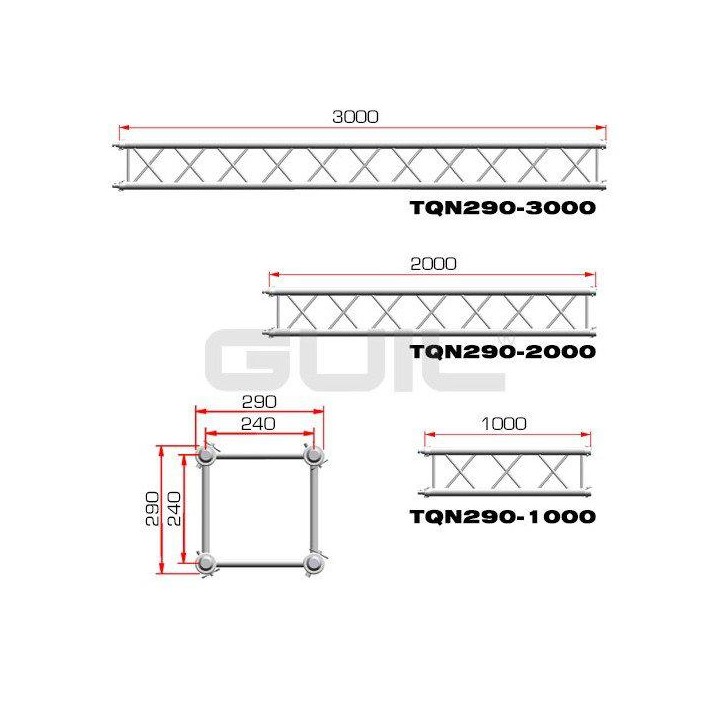

• Length: 1000 - 2000 - 3000 mm
• Alloy: EN-AW 6082 T6
• Sleepers: Ø 18 x 2 mm
• Main tubes: Ø 50 x 2 mm
