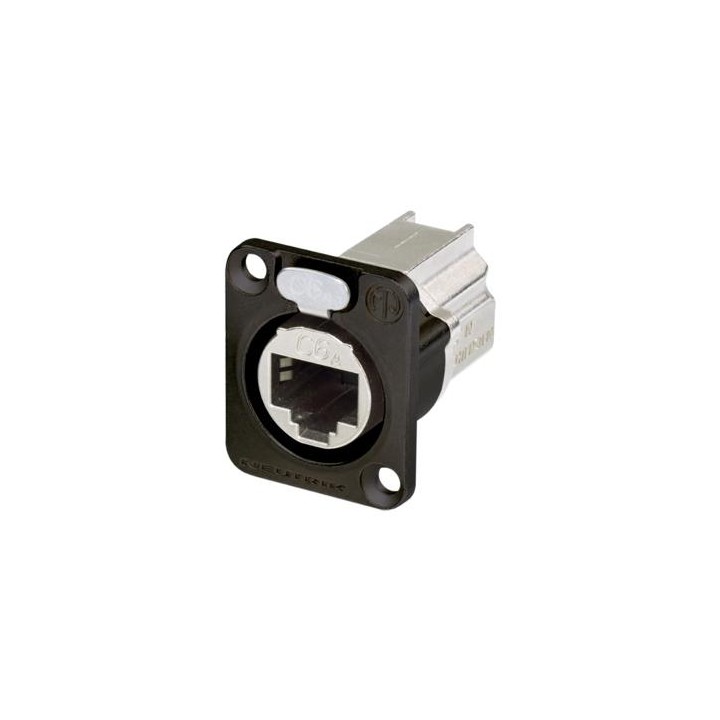

Neutrik - CONECTOR NE 8 FDX-P6-B

D-shape CAT6A panel connector, shielded, feedthrough, black housing Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
RRP€32.02€24.00You save €8.02
Tax included

Get it between Wed 25 Nov and Fri 27 Nov. 4 shipping options.

Shipping options

Carrier Information Price Delivery
Tienda Pick up at our store in Alcoy (Alicante) Free! Between Tue 24 Nov and Wed 25 Nov
Spain Home delivery. Departure from Alcoy warehouse (Alicante) Free! Between Thu 26 Nov and Fri 27 Nov
Spain Urgente Urgent home delivery. Departure from warehouse in Spain, Alcoy (Alicante) €3.94 Between Wed 25 Nov and Thu 26 Nov
Spain NextDay Home delivery 1 business day. Departure from warehouse in Spain, Alcoy (Alicante) €6.90 On Wed 25 Nov

Approximate dates, in business days. The price is for one unit; the exact amount is shown at checkout.
Available
  • Alcoy Store Out of stock
  • Central warehouse Available

Features & Benefits

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection

Technical Information

Product
Title NE8FDX-P6-B
Gender female
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet PoE+ acc. IEEE 802.3at
Mechanical
Lifetime > 1000 mating cycles
Wiresize
Wiring Feedthrough
Locking device Latch lock
Mounting direction Front mounting
Material
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black
Environmental
Flammability UL 94 V-0
Temperature range -40 °C to + 70 °C

  • Brand
  • Reference
    CONECTOR NE 8 FDX-P6-B
  • EAN13
    7613187009297
