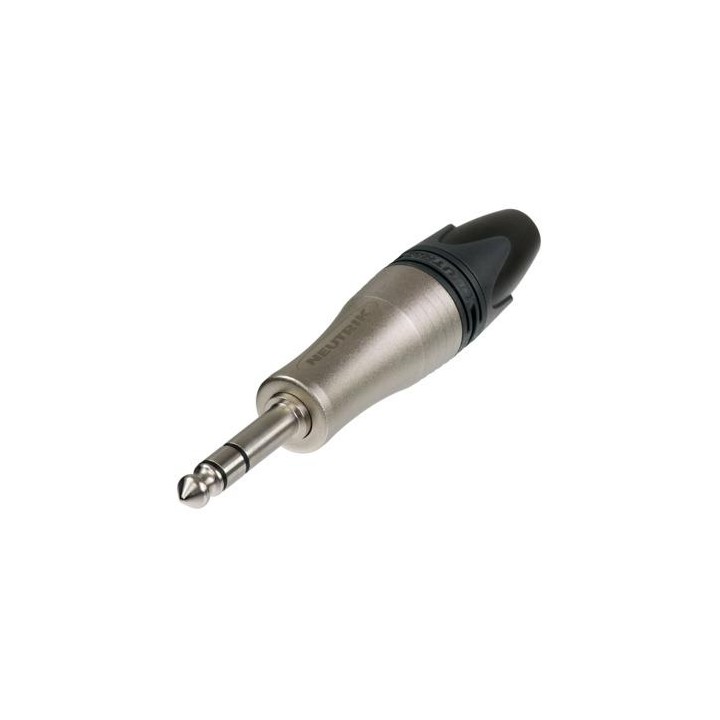

Neutrik - CONECTOR NP 3 XL

€18.00
Tax included
3 pole 1/4'' professional phone plug, up to 10 mm cable O.D. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.



Pago seguro



Entrega en 24/48 h.



Devoluciones gratuitas durante los 30 primeros días

Features & Benefits

  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Ergonomic design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Technical Information

Product
Title NP3XL
Connection Type Plug
Gender male
Electrical
Contact resistance ? mΩ depends on mating connector
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
Rated current per contact ? A depends on mating connector
Rated voltage < 50 V
Mechanical
Cable O.D. ≤ 10 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Temperature range -20 °C to +65 °C

  • Brand
  • Reference
    CONECTOR NP 3 XL
  • EAN13
    7613187007002
