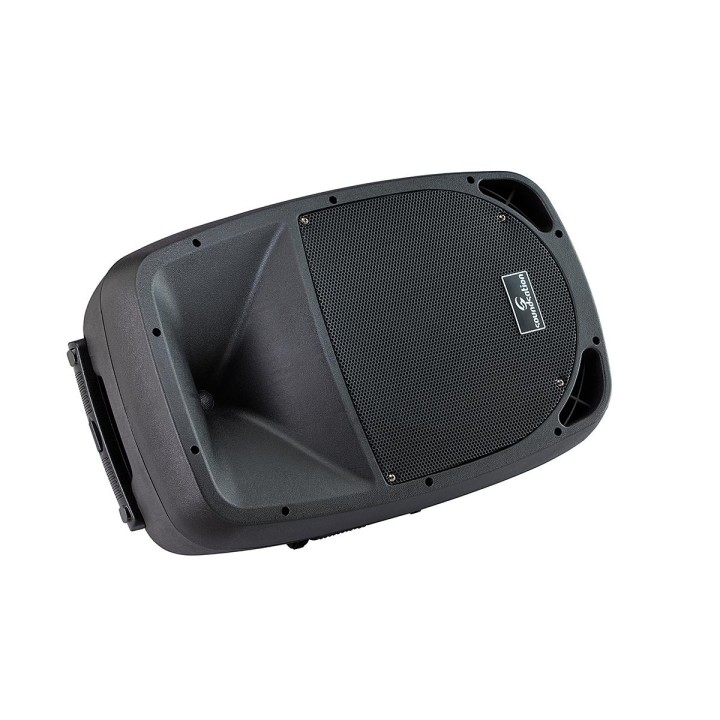

GO-SOUND family is now enhanced by a new battery-powered portable PA series with 12” and 15” woofers GO-SOUND 12AMW and 15AMW that, in addition to MP3 player, USB, SD-card, and Bluetooth™ connection of MULTIMEDIA version, integrates two VHF wireless microphones with handheld transmitters, an Echo effect for the two microphone inputs and the two wireless microphones, a useful 5-band graphic EQ and a handy trolley with wheels and telescopic handle on top. They are AC or battery operated; the latter with a duration of about 2.5 hours at maximum volume and full charge. Amplification, as well as for the previous GO-SOUND 12A and AM versions, is equipped with a Class-AB 800W (mains powered) peak-power module. The polypropylene enclosure is strong and lightweight, with metallic grille, 36mm standard pole mount hole, and acoustic foam to protect the woofer and give a pleasant look.
Specifications
Key features
| Sturdy polypropylene enclosure yet compact and lightweight |
| 800W Class-AB power amplifier (Peak power, mains powered) |
| 12" woofer, 1" compression driver |
| MP3 player with USB, SD Card and Bluetooth™ |

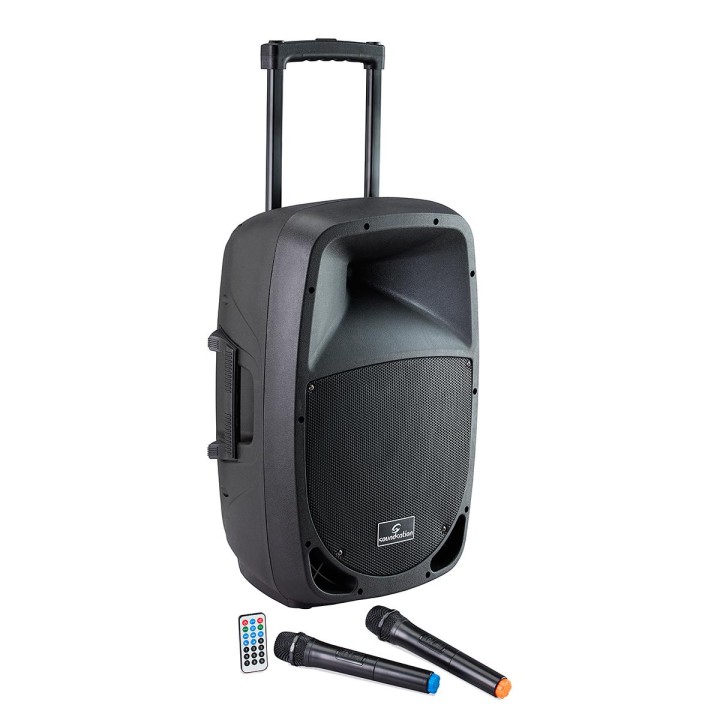

| Dual VHF Handheld Wireless Microphone |
| Echo Effect |
| Balanced Microphone/Line inputs |
| 5-Band Graphic EQ |
| Rechargeable Battery with 2.5-hour battery life |
| 36 mm standard pole mount |

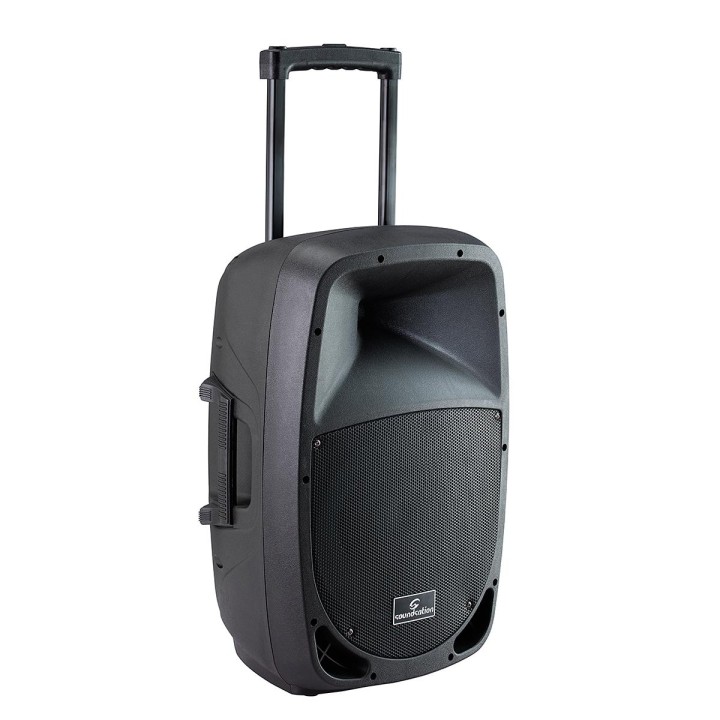

| Trolley system with wheels and one telescopic handle on top + 2 side handles |
Specifications
| Speaker Type |
Portable 2-way active speaker with rechargeable battery |
| Frequency response |
68Hz-19KHz |
| Max. SPL |
112dB (Mains Powered) |
| Transducers |
12" Woofer; 1" Compression Driver |
| Directivity (HxV) |
90° x 40° - 60° |
| Horn Type |
Asymmetric |
| Amplifier |
400W* Program, 800W* Peak Class AB (*Mains Powered) |

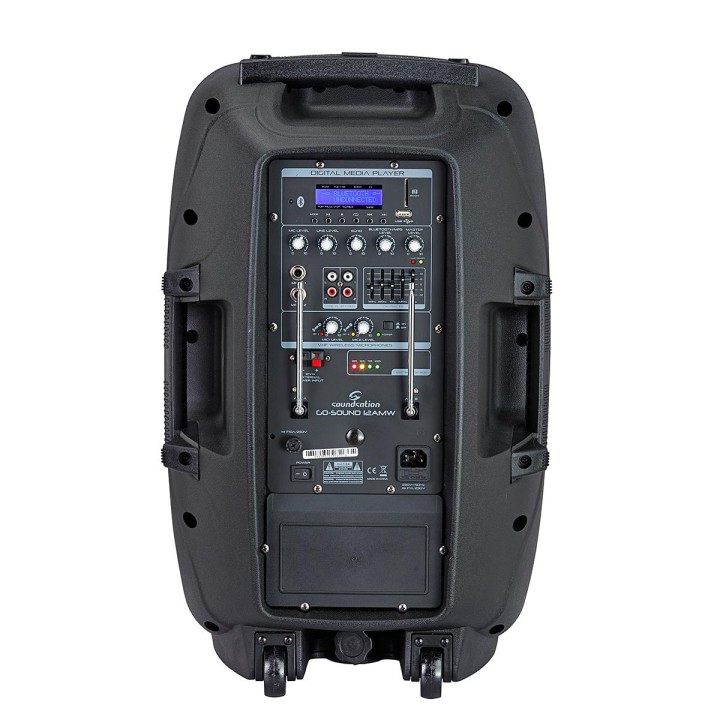

| Controls |
Mic1&2 level, Line level, Echo level, Bluetooth/MP3 level, Master level, Wireless Mics On, W. Mic1 level, W. Mic2 level |
| 5-Band Graphic EQ |
100Hz, 330Hz, 1KHz, 3,3KHz, 10KHz (+/- 12dB) |
| Connections |
Mic 1&2 6.3mm TS Jack, Line In L&R RCA Jack, Line Out L&R RCA Jack |
| Indicators |
Power, Clip, Wireless Mic On, RF Mic1, RF Mic2, Battery Charge |
| Media player |
USB, SD-Card, Bluetooth™, 2x16 LCD Display |
| Media player controls |
Stop, Play/Pause, Next track, Previous track, Mode |
| Mains Power |
230VAC-50Hz |
| Fuse |
T1A-250V |
| External Power (no charge function) |
12Vcc |
| External Add. Fuse |
T10A-250V |
| Rechargeable Battery |
12V-7AH Lead Battery (TC12-7.0 type) |
| Battery Dimension (WxHxD) |
151 x 100 (poles Included) x 65 mm |
| Housing material |
Polypropylene |
| Grille |
0.8mm, steel |
| Handles |
2 on sides; 1 telescopic on top |
| Trolley |
2 Wheels and 1 Telescopic Handle, 31 cm max. extension |
| Pole Mount |
Standard D36 mm |
| Speaker Dimension (WxHxD) |
375 x 588 x 320 mm |
| Packing Dimension (WxHxD) |
420 x 633 x 340 mm |
| Net Weight |
13.4 kg |
| Gross Weight |
15.4 kg |
